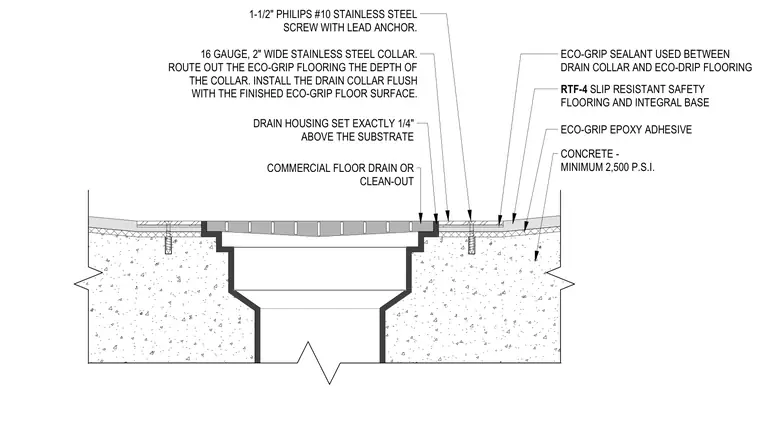

A commercial floor drain or clean-out is set into a concrete substrate with a minimum compressive strength of 2,500 pounds per square inch, with the drain housing positioned exactly one-quarter inch above the substrate. The surrounding floor consists of RTF-4 slip-resistant safety flooring adhered with Eco-Grip epoxy adhesive. A sixteen-gauge, two-inch-wide stainless steel collar is set into the routed flooring to match the finished floor surface. One-and-a-half-inch Phillips number ten stainless steel screws with lead anchors secure the collar to the concrete substrate. Eco-Grip sealant is applied between the stainless steel drain collar and the safety flooring.
RTF-4 SLIP RESISTANT SAFETY FLOORING AND INTEGRAL BASE ECO-GRIP EPOXY ADHESIVE CONCRETE - MINIMUM 2,500 P.S.I. 16 GAUGE, 2" WIDE STAINLESS STEEL COLLAR. ROUTE OUT THE ECO-GRIP FLOORING THE DEPTH OF THE COLLAR. INSTALL THE DRAIN COLLAR FLUSH WITH THE FINISHED ECO-GRIP FLOOR SURFACE. ECO-GRIP SEALANT USED BETWEEN DRAIN COLLAR AND ECO-DRIP FLOORING 1-1/2" PHILIPS #10 STAINLESS STEEL SCREW WITH LEAD ANCHOR. DRAIN HOUSING SET EXACTLY 1/4" ABOVE THE SUBSTRATE COMMERCIAL FLOOR DRAIN OR CLEAN-OUT
