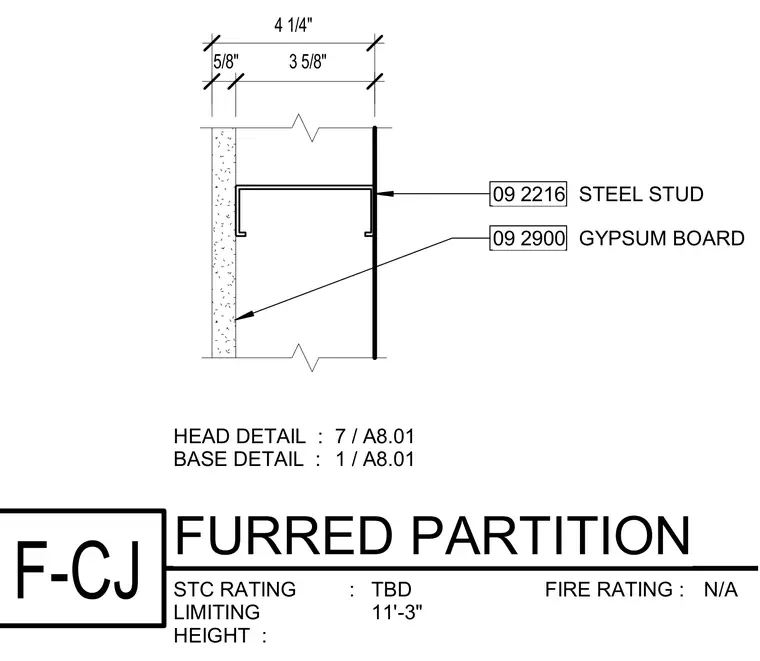

This furred partition detail shows a steel stud framing member faced with a single layer of five-eighths inch gypsum board. The assembly has a total thickness of four and one-quarter inches, comprising a three and five-eighths inch steel stud and a five-eighths inch gypsum board finish. Referenced details for the head and base connections are indicated on sheet A8.01. The limiting height for this partition is eleven feet three inches, with STC and fire ratings scheduled as TBD and N/A respectively.
5/8" 3 5/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-CJ FURRED PARTITION TBD N/A 11'-3" 7 / A8.01 1 / A8.01 09 2900 GYPSUM BOARD 09 2216 STEEL STUD 4 1/4"
