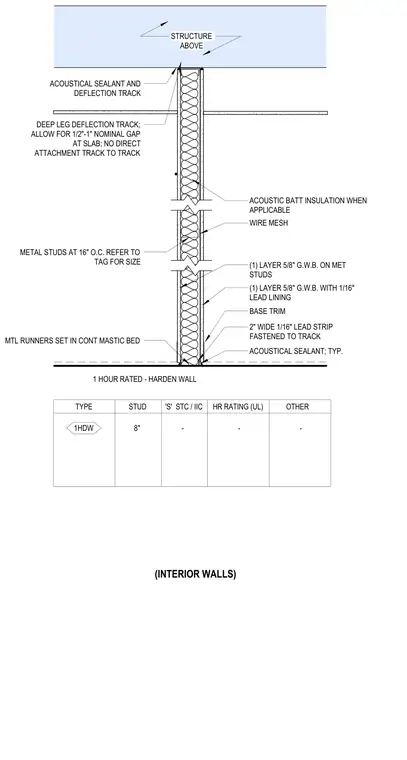

This interior wall detail features a one-hour rated partition constructed with metal studs spaced at sixteen inches on center and finished with one layer of five-eighths-inch gypsum wallboard on each side. One side incorporates a one-sixteenth-inch lead lining with a two-inch wide lead strip fastened to the track, alongside wire mesh and base trim. The wall ties into the structure above using a deep leg deflection track that allows for a one-half to one-inch nominal gap at the slab without direct track-to-track attachment. Acoustical sealant is applied at the joints, and metal runners are set in a continuous mastic bed at the base. Acoustic batt insulation is installed within the stud cavity when applicable.
(1) LAYER 5/8" G.W.B. ON MET STUDS BASE TRIM ACOUSTICAL SEALANT; TYP. (INTERIOR WALLS) 1 HOUR RATED - HARDEN WALL ACOUSTIC BATT INSULATION WHEN APPLICABLE MTL RUNNERS SET IN CONT MASTIC BED STRUCTURE ABOVE DEEP LEG DEFLECTION TRACK; ALLOW FOR 1/2"-1" NOMINAL GAP AT SLAB; NO DIRECT ATTACHMENT TRACK TO TRACK ACOUSTICAL SEALANT AND DEFLECTION TRACK 8" - (1) LAYER 5/8" G.W.B. WITH 1/16" LEAD LINING 2" WIDE 1/16" LEAD STRIP FASTENED TO TRACK WIRE MESH METAL STUDS AT 16" O.C. REFER TO TAG FOR SIZE TYPE 'S' STC / IIC HR RATING (UL) OTHER STUD 1HDW - -
