An interior door frame is secured to a cast-in-place concrete opening using expansion shell anchors at the jambs. A smoke and draft stop is installed where required. The joint between the frame and the concrete substrate is sealed with a backer rod and sealant.

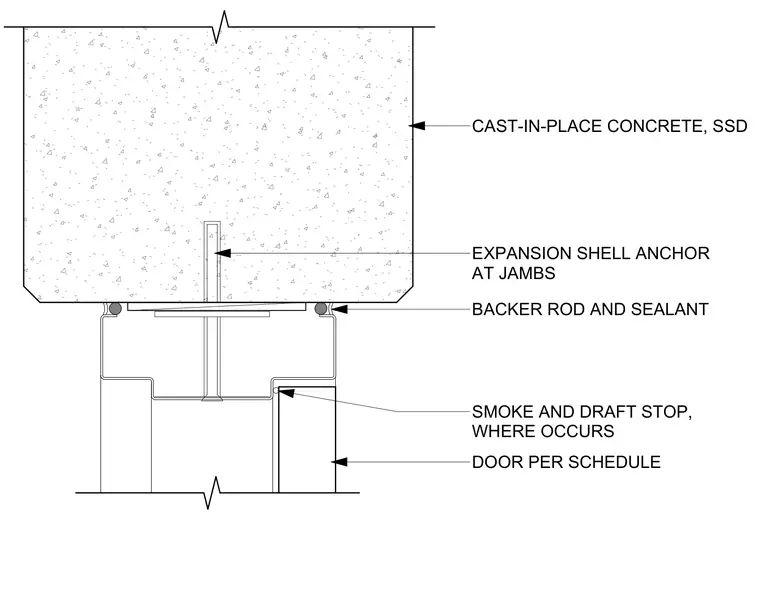

CAST-IN-PLACE CONCRETE, SSD EXPANSION SHELL ANCHOR AT JAMBS SMOKE AND DRAFT STOP, WHERE OCCURS DOOR PER SCHEDULE BACKER ROD AND SEALANT
