A new air handling unit pipe support extends through an existing ballasted single-ply membrane roofing assembly, rigid insulation, half-inch exterior gypsum board sheathing, and a metal deck. The roof assembly is supported by an existing steel beam requiring structural stiffening, with new spray fireproofing applied to the metal deck and steel beam to maintain the UL P701 listing. A sheet metal counter flashing and sheet metal flashing wrap the pipe penetration, secured with sealant at joints to maintain weatherproofing integrity. Fireproofing is patched and repaired as required per structural drawings.

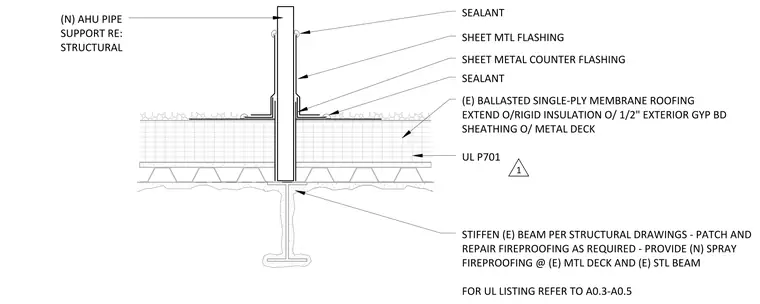

(E) BALLASTED SINGLE‐PLY MEMBRANE ROOFING EXTEND O/RIGID INSULATION O/ 1/2" EXTERIOR GYP BD SHEATHING O/ METAL DECK (N) AHU PIPE SUPPORT RE: STRUCTURAL SHEET MTL FLASHING STIFFEN (E) BEAM PER STRUCTURAL DRAWINGS ‐ PATCH AND REPAIR FIREPROOFING AS REQUIRED ‐ PROVIDE (N) SPRAY FIREPROOFING @ (E) MTL DECK AND (E) STL BEAM FOR UL LISTING REFER TO A0.3‐A0.5 SEALANT SHEET METAL COUNTER FLASHING SEALANT UL P701 1
