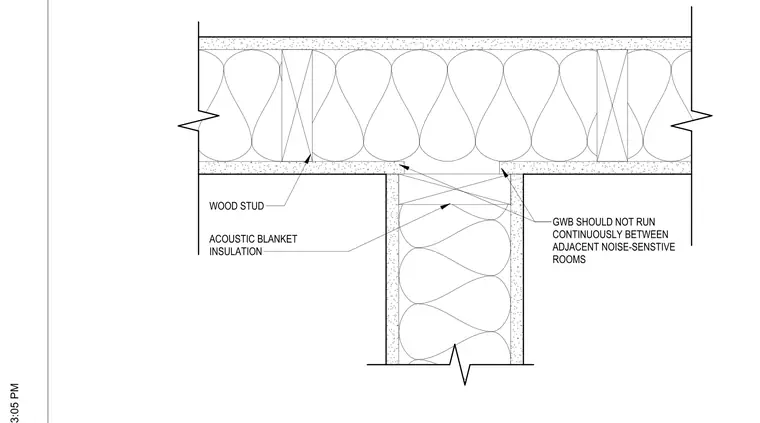

A continuous primary partition wall intersects with a secondary partition wall at a T-junction. Gypsum wallboard terminates at the face of the primary partition to prevent continuous bridging between adjacent noise-sensitive rooms. Both walls feature wood-stud framing and acoustic blanket insulation to meet sound attenuation requirements.
