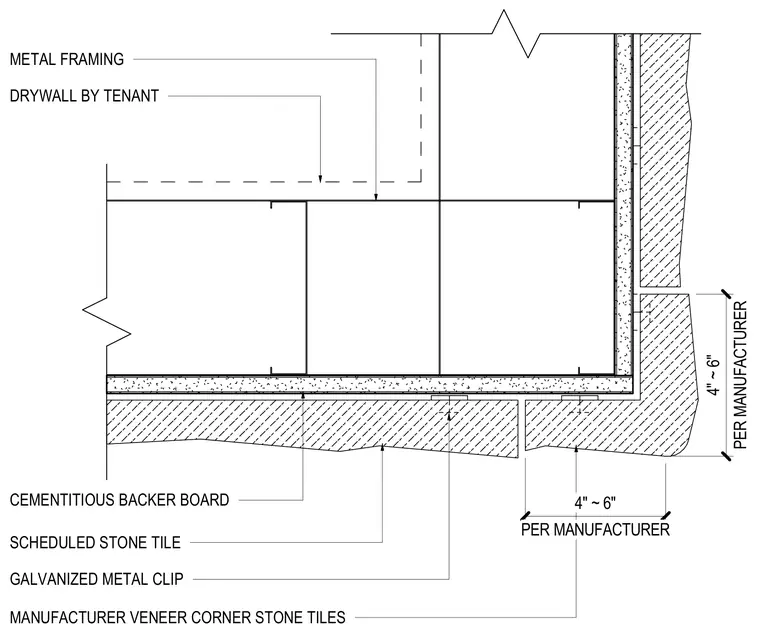

Scheduled stone tile veneer corner tiles are secured to metal framing using galvanized metal clips. A cementitious backer board provides the substrate behind the stone cladding. Tenant drywall finishes the interior side of the metal stud framing.
GALVANIZED METAL CLIP SCHEDULED STONE TILE METAL FRAMING DRYWALL BY TENANT MANUFACTURER VENEER CORNER STONE TILES PER MANUFACTURER 4" ~ 6" PER MANUFACTURER 4" ~ 6" CEMENTITIOUS BACKER BOARD
