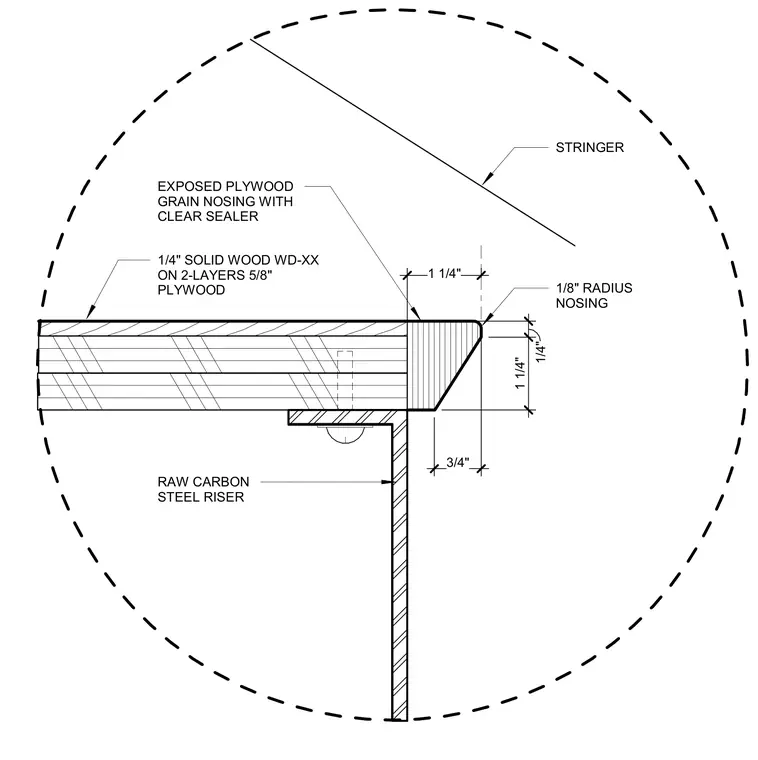

This stair tread assembly consists of two layers of five-eighths-inch plywood topped with a one-quarter-inch solid wood finish and a clear sealer. The exposed plywood grain nosing features a one-eighth-inch radius edge detail. The tread is supported underneath by a raw carbon steel riser.
1 1/4" 1/4" 1 1/4" 3/4" EXPOSED PLYWOOD GRAIN NOSING WITH CLEAR SEALER 1/4" SOLID WOOD WD-XX ON 2-LAYERS 5/8" PLYWOOD RAW CARBON STEEL RISER 1/8" RADIUS NOSING STRINGER
