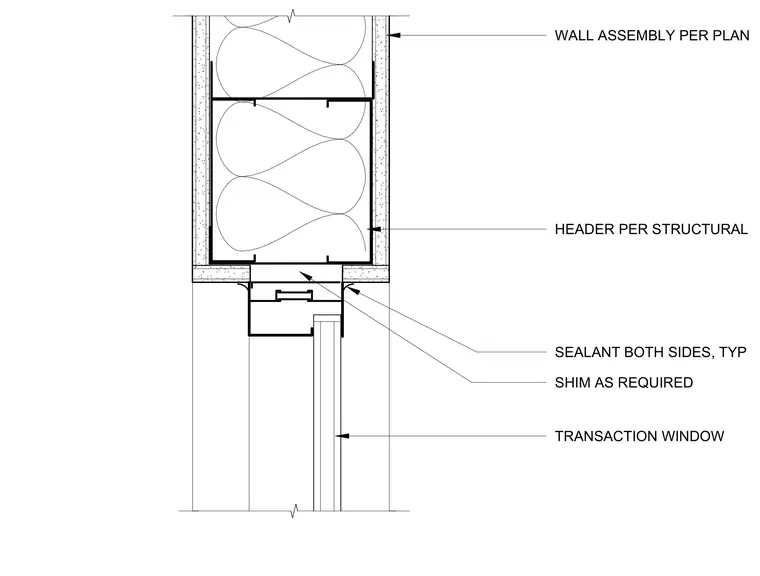

A transaction window is installed below a structural header and framed wall assembly sized per plan. Shims are placed as required between the header and window frame. Sealant is applied on both sides of the window head frame.
SEALANT BOTH SIDES, TYP SHIM AS REQUIRED WALL ASSEMBLY PER PLAN HEADER PER STRUCTURAL TRANSACTION WINDOW
