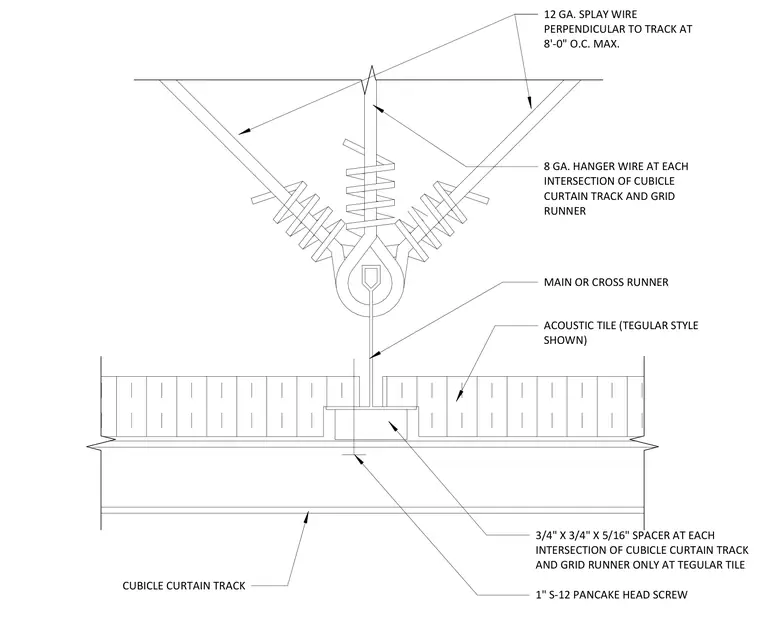

The assembly suspends a cubicle curtain track below a suspended acoustical ceiling grid using 1-inch S-12 pancake head screws. A 3/4-inch by 3/4-inch by 5/16-inch spacer is positioned at each intersection of the cubicle curtain track and grid runner specifically for tegular style acoustic tile. The ceiling grid system is supported by eight-gauge hanger wires at each intersection of the cubicle curtain track and grid runner. Twelve-gauge splay wires are installed perpendicular to the track at a maximum spacing of eight feet on center.
CUBICLE CURTAIN TRACK 1" S-12 PANCAKE HEAD SCREW 3/4" X 3/4" X 5/16" SPACER AT EACH INTERSECTION OF CUBICLE CURTAIN TRACK AND GRID RUNNER ONLY AT TEGULAR TILE ACOUSTIC TILE (TEGULAR STYLE SHOWN) MAIN OR CROSS RUNNER 8 GA. HANGER WIRE AT EACH INTERSECTION OF CUBICLE CURTAIN TRACK AND GRID RUNNER 12 GA. SPLAY WIRE PERPENDICULAR TO TRACK AT 8'-0" O.C. MAX.
