A continuous rear door binder interfaces with a rear wall binder assembly located within a door pocket. A sixty-minute rated automatic closing sliding fire door operates adjacent to a one-hour rated framed wall designated as P3X. A typical dimension of six and three-quarters inches maintains the pocket alignment. Fasteners secure the components within the framed wall construction.

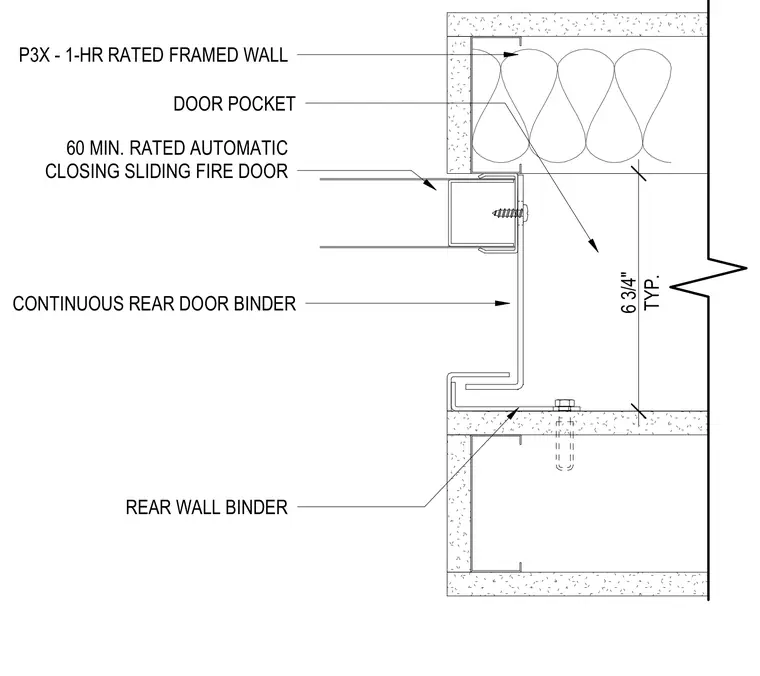

REAR WALL BINDER CONTINUOUS REAR DOOR BINDER DOOR POCKET P3X - 1-HR RATED FRAMED WALL 60 MIN. RATED AUTOMATIC CLOSING SLIDING FIRE DOOR 6 3/4" TYP.
