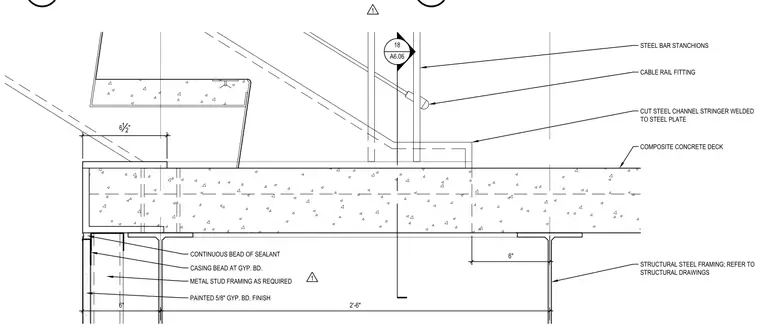

A cut steel channel stringer is welded to a steel plate supported by a composite concrete deck over structural steel framing. Steel bar stanchions with cable rail fittings attach to the stair assembly. Below the concrete slab, metal stud framing carries a painted five-eighths inch gypsum board finish with a casing bead and a continuous bead of sealant at the interface.
SCALE: 3" = 1'-0" SCALE: D05 HANDRAIL AT GYP BD PARTN 01 3"=1'-0" STEEL BAR STANCHIONS 18 A6.06 CABLE RAIL FITTING COMPOSITE CONCRETE DECK STRUCTURAL STEEL FRAMING; REFER TO STRUCTURAL DRAWINGS 2'-6" 6" CUT STEEL CHANNEL STRINGER WELDED TO STEEL PLATE 612" 6" CONTINUOUS BEAD OF SEALANT METAL STUD FRAMING AS REQUIRED PAINTED 5/8" GYP. BD. FINISH CASING BEAD AT GYP. BD. 15 19 1 1
