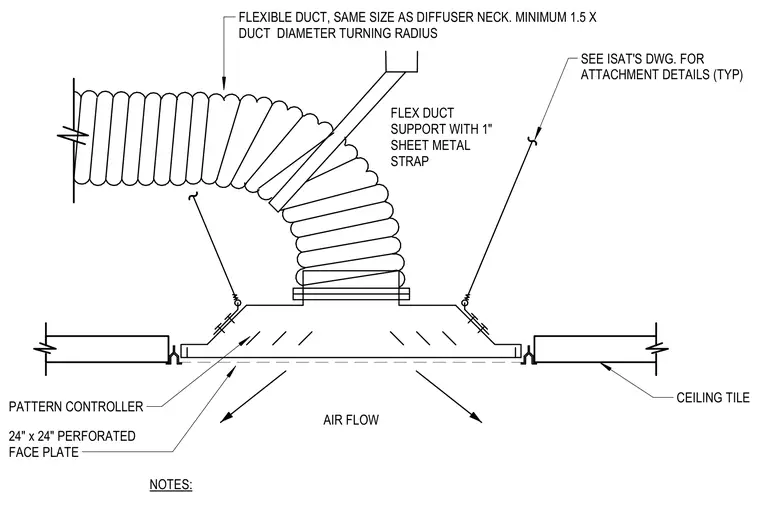

A twenty-four by twenty-four inch perforated face plate diffuser integrates into a lay-in ceiling tile grid with internal pattern controllers for directional airflow. A flexible duct matching the size of the diffuser neck connects to the unit, maintaining a minimum one point five times duct diameter turning radius. The flexible duct is supported by a one-inch sheet metal strap, with structural attachment details sized per structural engineering drawings.
AIR FLOW SEE ISAT'S DWG. FOR ATTACHMENT DETAILS (TYP) 24" x 24" PERFORATED FACE PLATE FLEXIBLE DUCT, SAME SIZE AS DIFFUSER NECK. MINIMUM 1.5 X DUCT DIAMETER TURNING RADIUS FLEX DUCT SUPPORT WITH 1" SHEET METAL STRAP PATTERN CONTROLLER CEILING TILE NOTES:
