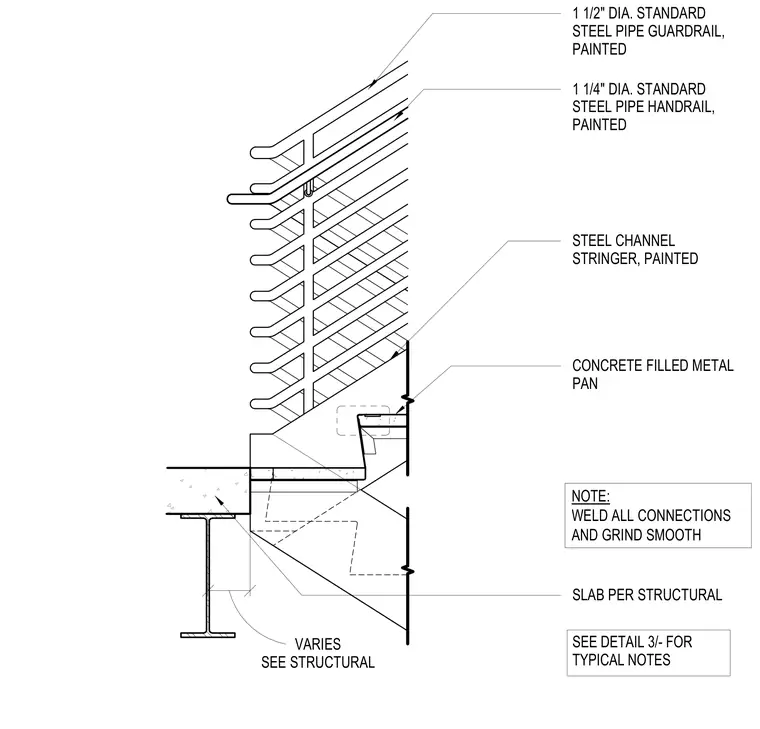

A painted steel channel stringer supports concrete-filled metal pan stairs terminating at a concrete slab per structural drawings. A one and one-half inch diameter standard steel pipe guardrail and one and one-quarter inch diameter standard steel pipe handrail attach to the assembly with all connections welded and ground smooth. Structural support conditions vary per the structural drawings.
VARIES SEE STRUCTURAL CONCRETE FILLED METAL PAN SLAB PER STRUCTURAL 1 1/2" DIA. STANDARD STEEL PIPE GUARDRAIL, PAINTED 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL, PAINTED STEEL CHANNEL STRINGER, PAINTED SEE DETAIL 3/- FOR TYPICAL NOTES NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH
