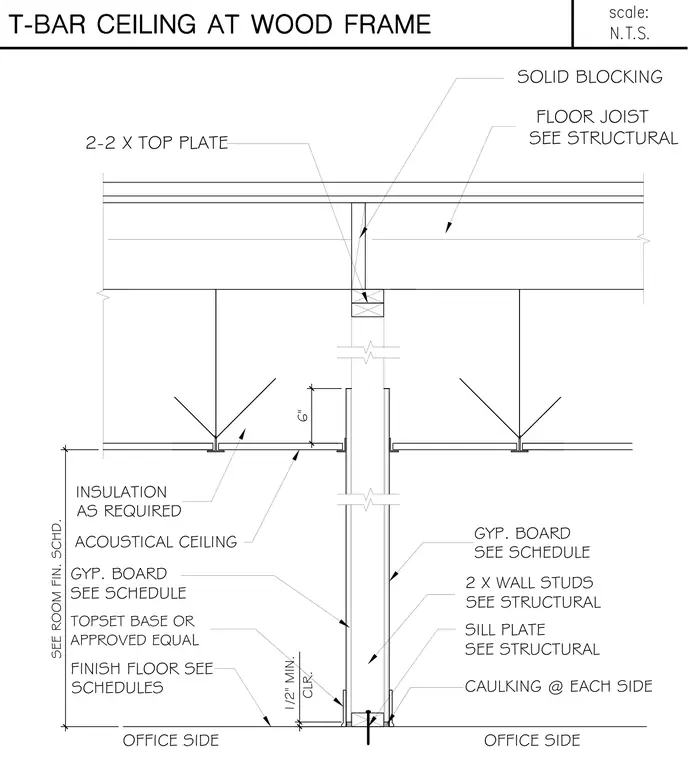

An acoustical ceiling terminates at a wood-framed partition wall with a two-by double top plate and solid blocking below the floor joists. The wall features two-by wood studs sized per structural drawings and is finished with gypsum board on both sides per the finish schedule. A topset base or approved equal is applied at the finish floor level, which is detailed per schedules. Caulking is installed at each side of the wall base, maintaining a one-half inch minimum clearance to the acoustical ceiling.
ACOUSTICAL CEILING CLR. 1/2" MIN. SEE ROOM FIN. SCHD. SILL PLATE SEE STRUCTURAL 2 X WALL STUDS SEE STRUCTURAL FINISH FLOOR SEE SCHEDULES 2-2 X TOP PLATE SOLID BLOCKING TOPSET BASE OR APPROVED EQUA L CAULKING @ EACH SIDE INSULATION AS REQUIRED GYP. BOARD SEE SCHEDULE OFFICE SIDE OFFICE SIDE FLOOR JOIST SEE STRUCTURAL 6" GYP. BOARD SEE SCHEDULE
