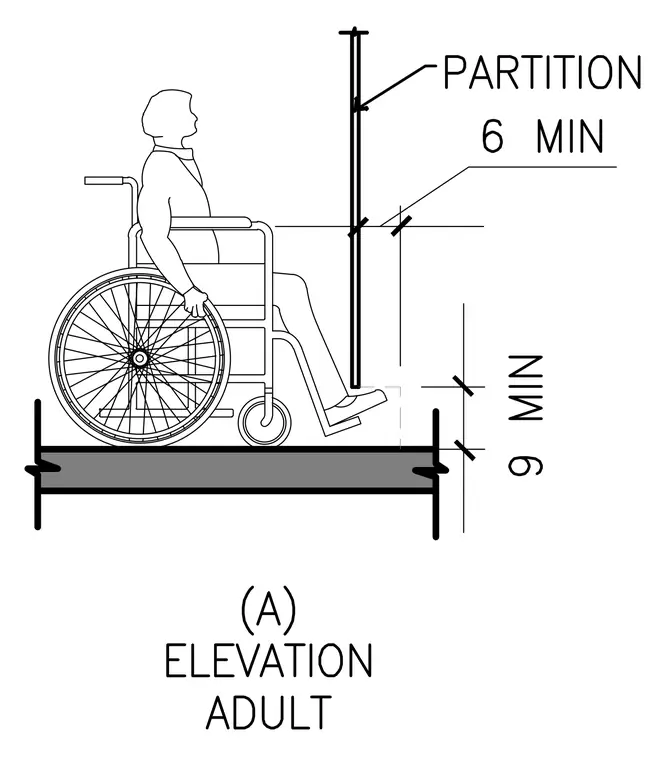

An interior partition extends above a floor slab with specific vertical accessibility clearances for an adult wheelchair user. A minimum clearance of 9 inches is maintained from the floor to the base of the partition, and a 6-inch minimum dimension is indicated above the armrest height. Compliance standards for toe clearances and wall partitions are established for accessible spaces.
