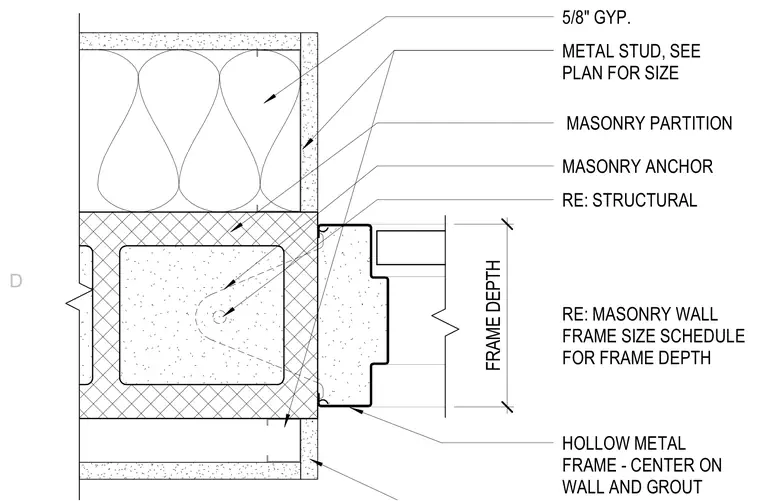

A hollow metal frame is centered on the masonry wall and fully grouted, anchored back with masonry anchors tied to the wall. The adjacent partition consists of metal studs sized per plan faced with five-eighths inch gypsum board on each side. The hollow metal frame depth is verified against the frame size schedule.
FRAME DEPTH HOLLOW METAL FRAME - CENTER ON WALL AND GROUT MASONRY ANCHOR MASONRY PARTITION RE: STRUCTURAL RE: MASONRY WALL FRAME SIZE SCHEDULE FOR FRAME DEPTH 5/8" GYP. METAL STUD, SEE PLAN FOR SIZE D
