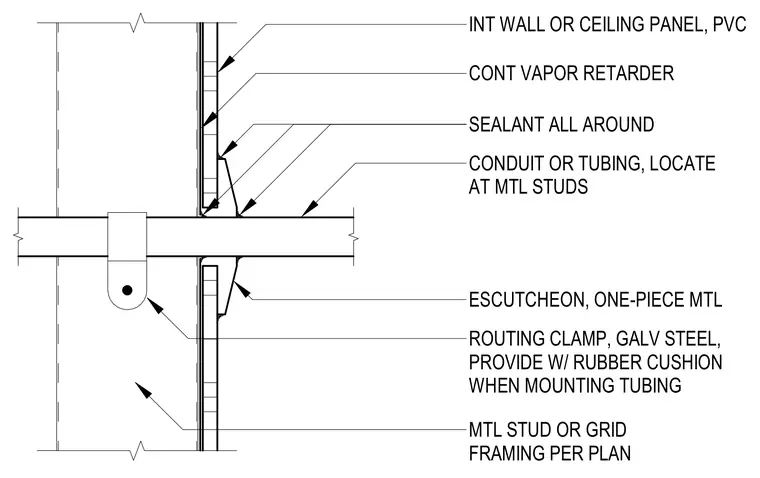

Conduit or tubing passes through an interior wall or ceiling framed with metal studs or grid framing per plan. A continuous vapor retarder backs the PVC interior wall or ceiling panel. The conduit is supported internally by a galvanized steel routing clamp equipped with a rubber cushion when mounting tubing, located at the metal studs. A one-piece metal escutcheon covers the penetration and is sealed all around with sealant.
INT WALL OR CEILING PANEL, PVC CONT VAPOR RETARDER MTL STUD OR GRID FRAMING PER PLAN ROUTING CLAMP, GALV STEEL, PROVIDE W/ RUBBER CUSHION WHEN MOUNTING TUBING SEALANT ALL AROUND ESCUTCHEON, ONE-PIECE MTL CONDUIT OR TUBING, LOCATE AT MTL STUDS
