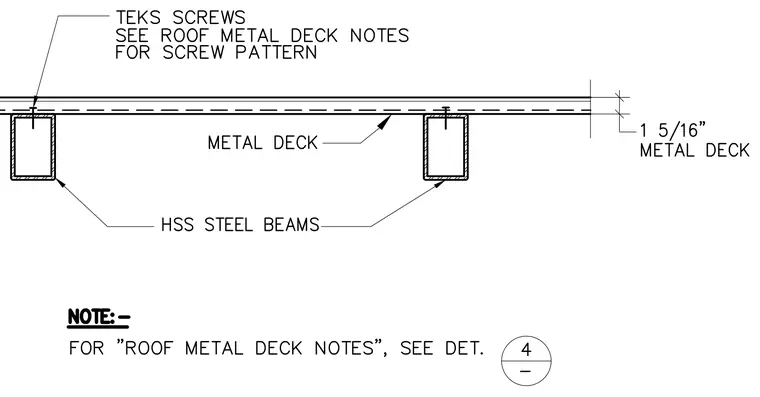

A metal deck bears directly across hollow structural section steel beams and is secured with Teks screws using a pattern specified in the roof metal deck notes. The metal deck profile measures 1 5/16 inches in depth. A reference note directs the builder to detail 4 for additional roof metal deck notes.
