A metal pipe or conduit passes through an opening in a six-inch rated gypsum board and metal stud partition. The annular space between the penetrating conduit and the wall assembly is sealed with fire-rated sealant per the rated assembly requirements up to a maximum of four hours, referencing UL system W-L-1001 or equivalent.

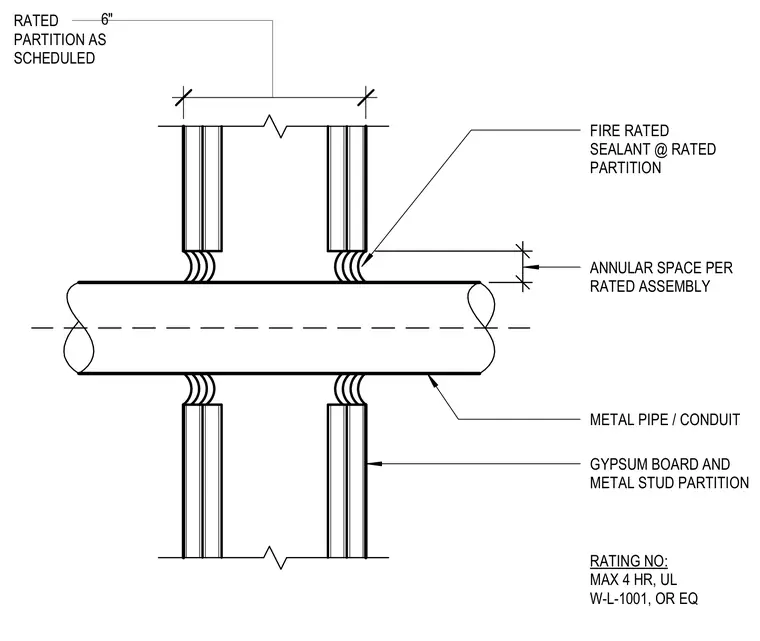

FIRE RATED SEALANT @ RATED PARTITION ANNULAR SPACE PER RATED ASSEMBLY METAL PIPE / CONDUIT GYPSUM BOARD AND METAL STUD PARTITION RATING NO: MAX 4 HR, UL W-L-1001, OR EQ 6" RATED PARTITION AS SCHEDULED
