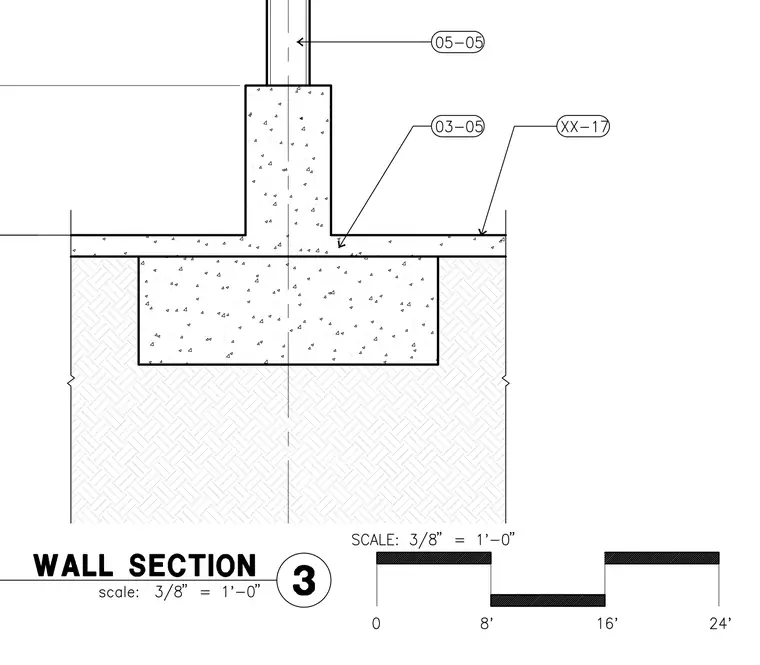

A reinforced concrete stem wall bears upon a poured concrete footing with a thickened slab-on-grade connection. The assembly includes a continuous concrete stem wall extending upward with vertical wall elements tied to the foundation. Detail callouts reference adjacent sheets for additional construction coordination.
