Handrail gripping surface details comply with accessibility standards providing a 1-1/4 inch minimum to 1-1/2 inch maximum width profile. The handrail maintains a 1-1/2 inch minimum clearance from the adjacent wall surface. Gripping surfaces adhere to California Building Code CBC 2016 figures 11B-505.5 and 11B-505.6.

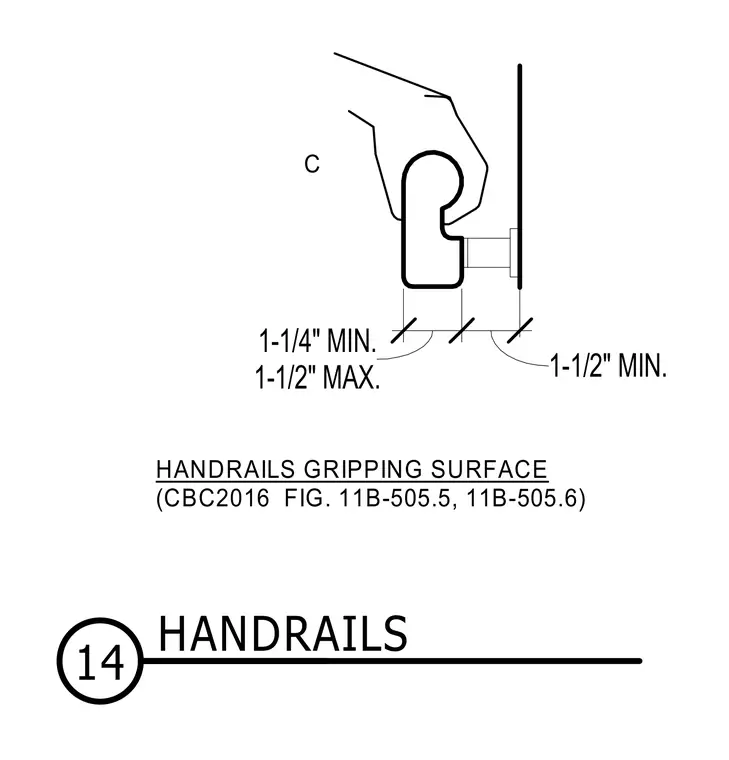

C 1-1/2" MAX. 1-1/4" MIN. 1-1/2" MIN. HANDRAILS GRIPPING SURFACE (CBC2016 FIG. 11B-505.5, 11B-505.6) 14 HANDRAILS
