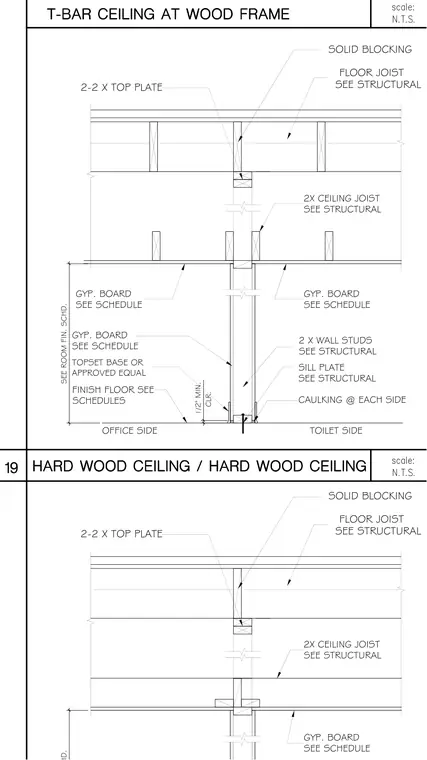

This wall and ceiling intersection detail features wood framing with double two-by top plates and solid blocking beneath floor joists sized per structural drawings. Two-by wall studs are capped with a sill plate at the base, flanked on both sides by gypsum board finishes as specified in room schedules. A one-half-inch minimum clearance is maintained at the base, finished with a topset base or approved equal and sealed with caulking at each side. Two-by ceiling joists span across the top of the wall partition, supporting the ceiling gypsum board layers.
2-2 X TOP PLATE SOLID BLOCKING FLOOR JOIST SEE STRUCTURAL GYP. BOARD SEE SCHEDULE CLR. 1/2" MIN. SEE ROOM FIN. SCHD. SILL PLATE SEE STRUCTURAL 2 X WALL STUDS SEE STRUCTURAL FINISH FLOOR SEE SCHEDULES 2-2 X TOP PLATE SOLID BLOCKING TOPSET BASE OR APPROVED EQUA L CAULKING @ EACH SIDE GYP. BOARD SEE SCHEDULE TOILET SIDE OFFICE SIDE FLOOR JOIST SEE STRUCTURAL GYP. BOARD SEE SCHEDULE 2X CEILING JOIST SEE STRUCTURAL 2X CEILING JOIST SEE STRUCTURAL GYP. BOARD SEE SCHEDULE
