Concrete slabs and walls penetrating pipes and conduits require specific sleeve sizing and minimum spacing to maintain structural integrity. The maximum sleeve diameter is limited to one-third of the slab or wall thickness or two inches, whichever is smaller. Sleeves must maintain a minimum clear spacing of three times the diameter or four inches. Where the required clear distance between sleeves cannot be achieved, the congested area must be detailed and reinforced as a structural opening.

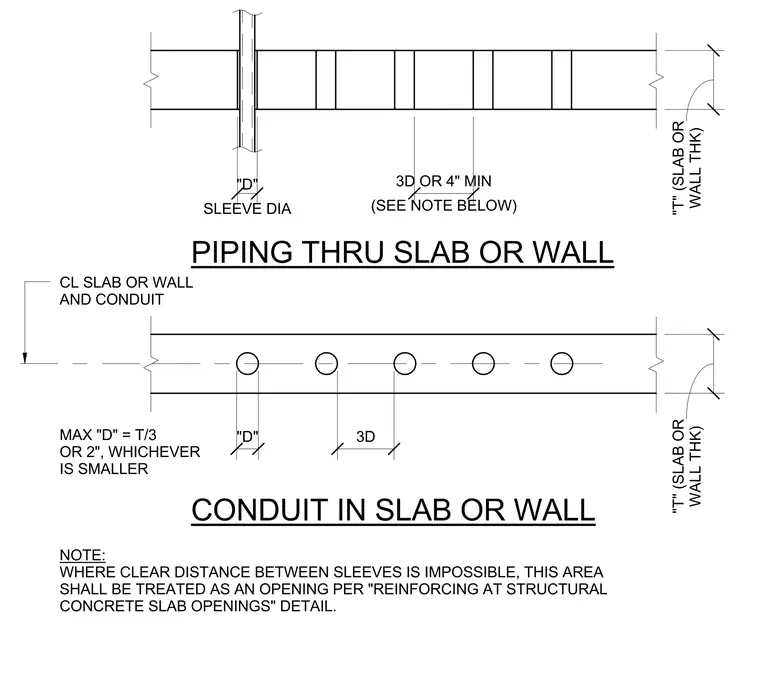

CONDUIT IN SLAB OR WALL NOTE: WHERE CLEAR DISTANCE BETWEEN SLEEVES IS IMPOSSIBLE, THIS AREA SHALL BE TREATED AS AN OPENING PER "REINFORCING AT STRUCTURAL CONCRETE SLAB OPENINGS" DETAIL. MAX "D" = T/3 OR 2", WHICHEVER IS SMALLER SLEEVE DIA "D" (SEE NOTE BELOW) 3D OR 4" MIN WALL THK) "T" (SLAB OR WALL THK) "T" (SLAB OR "D" 3D CL SLAB OR WALL AND CONDUIT PIPING THRU SLAB OR WALL
