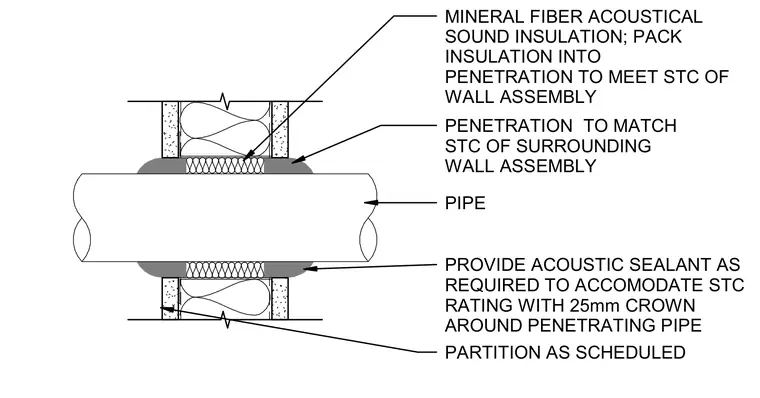

A pipe penetrates a partition wall as scheduled, maintaining the sound transmission class rating of the surrounding assembly. Mineral fiber acoustical sound insulation is tightly packed into the annular space around the penetration. An acoustic sealant is provided as required to accommodate the STC rating, featuring a twenty-five millimeter crown around the penetrating pipe.
PENETRATION TO MATCH STC OF SURROUNDING WALL ASSEMBLY PIPE PROVIDE ACOUSTIC SEALANT AS REQUIRED TO ACCOMODATE STC RATING WITH 25mm CROWN AROUND PENETRATING PIPE MINERAL FIBER ACOUSTICAL SOUND INSULATION; PACK INSULATION INTO PENETRATION TO MEET STC OF WALL ASSEMBLY PARTITION AS SCHEDULED
