Floating Plastic Laminate Shelf Wall Connection

Materials

Elements

About this detail

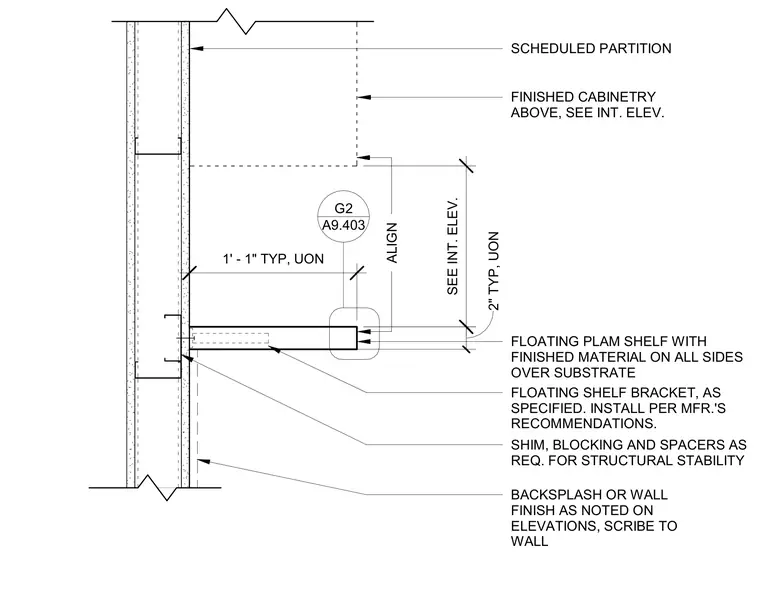

A floating plastic laminate shelf is supported by a concealed bracket anchored to a scheduled partition. Shims, blocking, and spacers are provided as required for structural stability behind the wall finish. A backsplash or wall finish is scribed to the wall as noted on interior elevations. Finished cabinetry aligns above the shelf per interior elevations.
