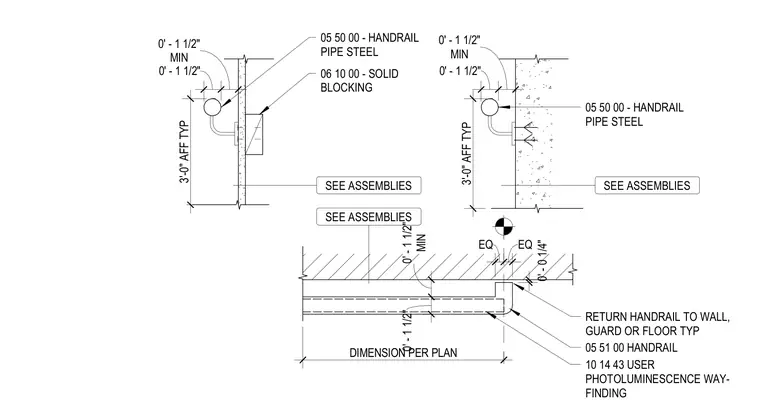

A steel pipe handrail is mounted to a framed wall backed by solid wood blocking, maintaining a typical height of three feet above the finished floor. The pipe requires a minimum clearance of one and one-half inches from the mounting wall surface. Handrail ends terminate with a standard return back to the wall, guard, or floor as required. Spacing and dimensions are coordinated per plan with photoluminescent way-finding elements integrated into the assembly.
0' - 1 1/2" MIN 0' - 1 1/2" 3'-0" AFF TYP 0' - 1 1/2" MIN 0' - 1 1/2" 3'-0" AFF TYP 05 50 00 - HANDRAIL PIPE STEEL 05 50 00 - HANDRAIL PIPE STEEL 06 10 00 - SOLID BLOCKING 0' - 1 1/2" MIN 0' - 1 1/2" 0' - 0 1/4" RETURN HANDRAIL TO WALL, GUARD OR FLOOR TYP 05 51 00 HANDRAIL 10 14 43 USER PHOTOLUMINESCENCE WAY- FINDING EQ EQ DIMENSION PER PLAN SEE ASSEMBLIES SEE ASSEMBLIES SEE ASSEMBLIES
