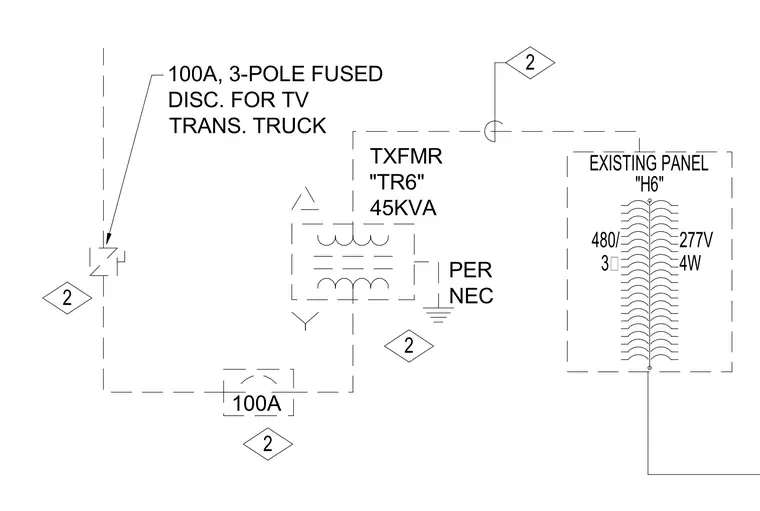

An electrical schematic diagram details the service connection for a television transmission truck utilizing a 45KVA transformer designated as TR6. Power is supplied through an existing panel H6 operating at 480/277V, 3-phase, 4-wire service. A 100A, 3-pole fused disconnect switch feeds the television transmission truck. The transformer is grounded per National Electrical Code requirements.
EXISTING PANEL "H6" 277V 480/ 3∅ 4W 2 2 2 2 PER NEC TXFMR "TR6" 45KVA 100A 100A, 3&POLE FUSED DISC. FOR TV TRANS. TRUCK
