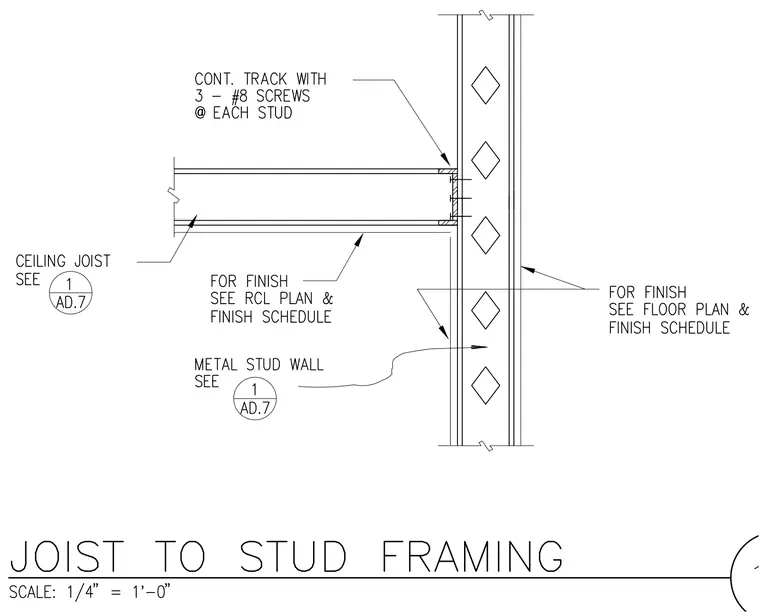

A ceiling joist frames perpendicular to a metal stud wall utilizing a continuous track secured by three number eight screws at each stud. The metal stud wall and ceiling joist finishes are coordinated per the reflected ceiling plan, floor plan, and finish schedule.
