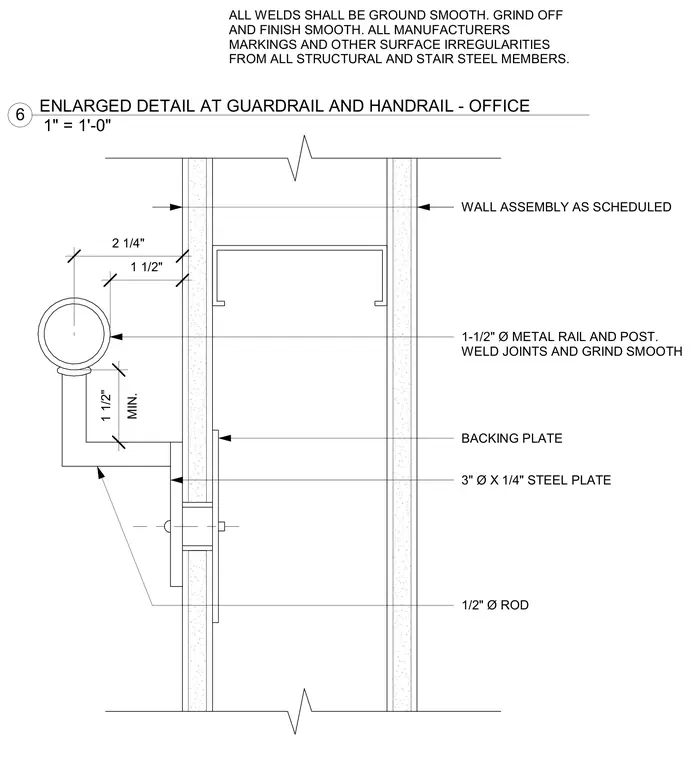

A 1-1/2 inch diameter metal rail and post mounts to a scheduled wall assembly using a welded connection. The assembly incorporates a backing plate and a 3 inch diameter by 1/4 inch steel plate secured with a 1/2 inch diameter rod. All joints are welded and ground smooth to eliminate surface irregularities.
MIN. 1 1/2" 2 1/4" 1 1/2" WALL ASSEMBLY AS SCHEDULED 1-1/2" Ø METAL RAIL AND POST. WELD JOINTS AND GRIND SMOOTH BACKING PLATE 3" Ø X 1/4" STEEL PLATE 1/2" Ø ROD ALL WELDS SHALL BE GROUND SMOOTH. GRIND OFF AND FINISH SMOOTH. ALL MANUFACTURERS MARKINGS AND OTHER SURFACE IRREGULARITIES FROM ALL STRUCTURAL AND STAIR STEEL MEMBERS. 1" = 1'-0" 6 ENLARGED DETAIL AT GUARDRAIL AND HANDRAIL - OFFICE
