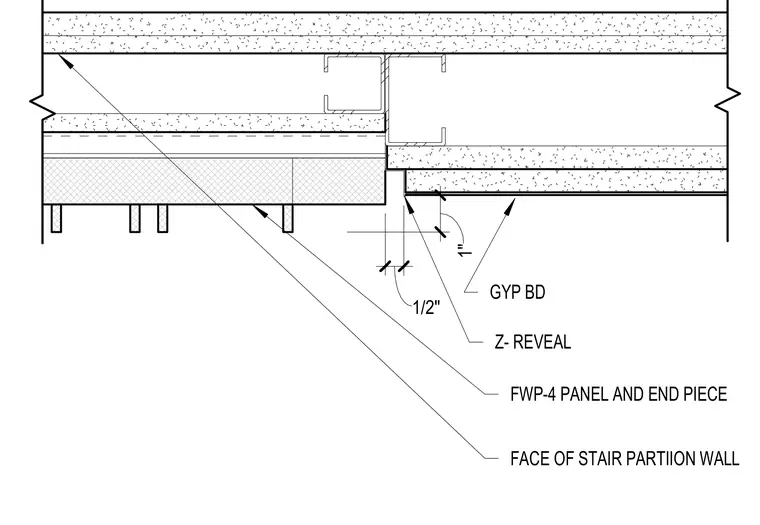

A one-inch Z-reveal separates a half-inch gypsum board wall finish from an FWP-4 panel and end piece at the face of a stair partition wall. The assembly frames the transition with light-gauge metal studs backing the gypsum board and panel finishes.
1 " Z - R E V E A L 1 / 2 " G Y P B D F W P - 4 P A N E L A N D E N D P I E C E F A C E O F S T A I R P A R T I I O N W A L L
