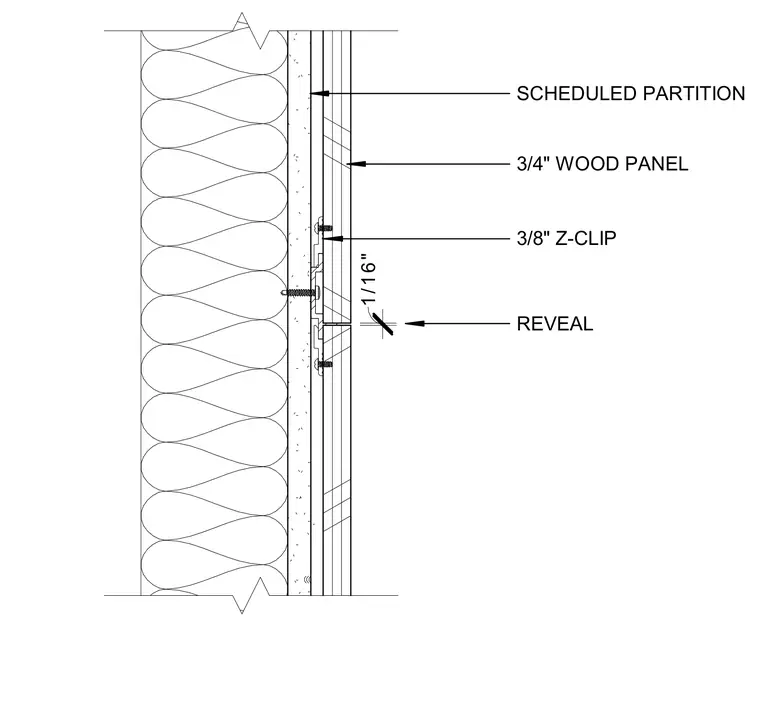

Three-quarter-inch wood panels are secured to a scheduled partition using three-eighths-inch Z-clips fastened with screws. Adjacent wood panels maintain a one-sixteenth-inch reveal at the joint.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
