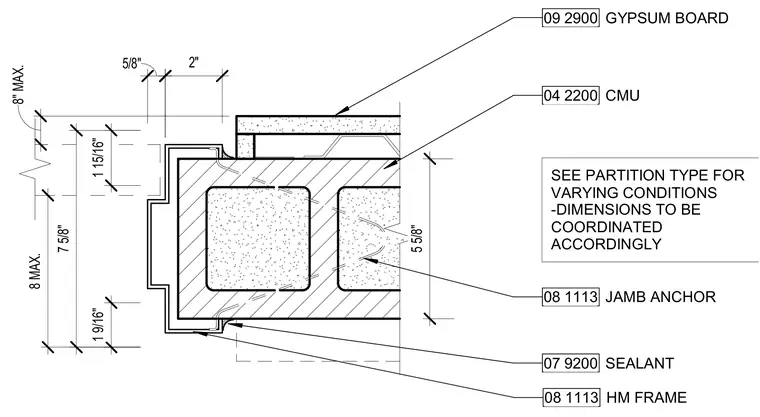

A hollow metal frame is set into a concrete masonry unit wall and secured with jamb anchors spaced at a maximum of eight inches on center. Gypsum board finishes return to the frame profile, sealed with elastomeric sealant at the joint. Dimensions govern anchor spacing and frame clearances relative to the masonry opening.
2" 5/8" 1 15/16" 1 9/16" 7 5/8" 5 5/8" SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY 09 2900 GYPSUM BOARD 08 1113 HM FRAME 07 9200 SEALANT 04 2200 CMU 8 MAX. 8" MAX. 08 1113 JAMB ANCHOR
