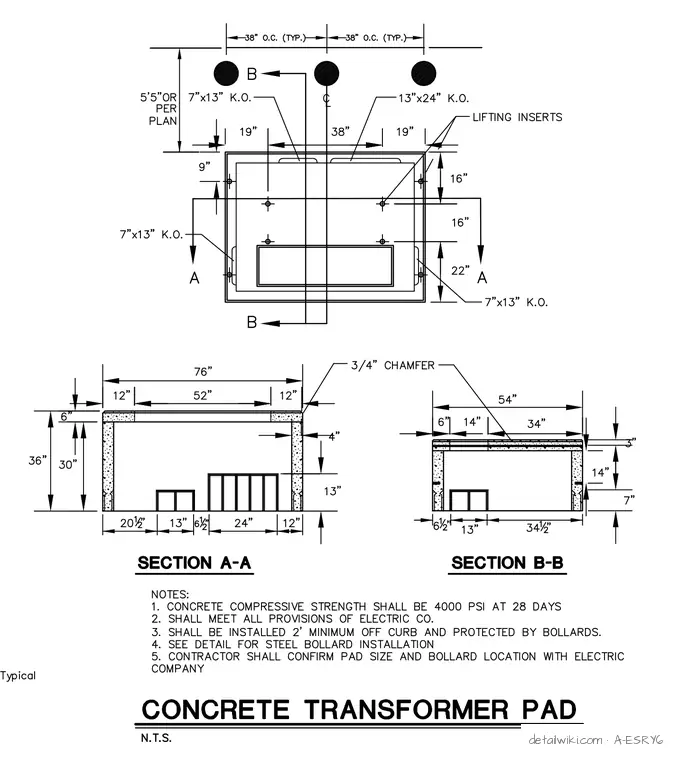

A reinforced concrete transformer pad includes designated knockout openings and lifting inserts for handling. Section A-A and Section B-B specify pad dimensions, wall thicknesses, and internal clearances including cable entry locations. Three protective bollards are spaced on thirty-eight inch centers typically behind the pad, maintaining a two foot minimum offset from the curb per electric company requirements. Concrete compressive strength is four thousand psi at twenty-eight days with three-quarter inch chamfered edges.
