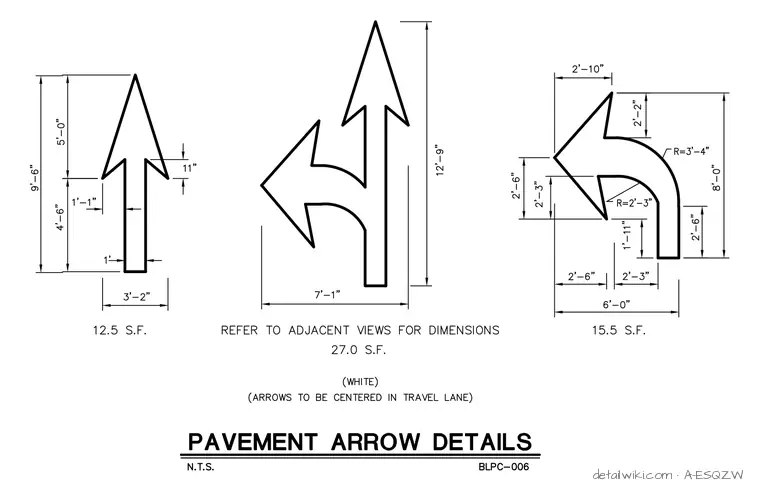

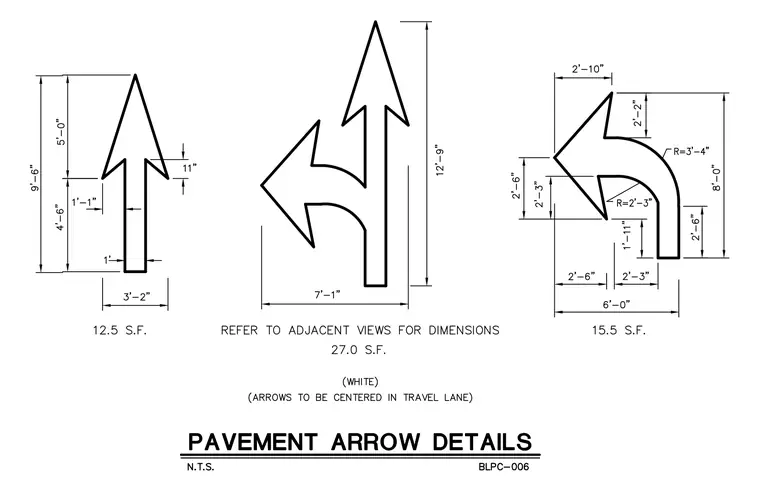

Pavement marking layouts show three standard traffic arrow configurations with comprehensive dimensioning for site striping execution. The straight arrow measures nine feet six inches overall in length with a five-foot head and a one-foot width at the shaft, encompassing twelve point five square feet. The combined straight and left-turn arrow configuration spans twelve feet nine inches in height and seven feet one inch in width, totaling twenty-seven square feet. The curved left-turn arrow assembly measures eight feet in height and six feet in width with specified radius curves of two feet three inches and three feet four inches, encompassing fifteen point five square feet. All arrows are specified as white and centered within the travel lane.
