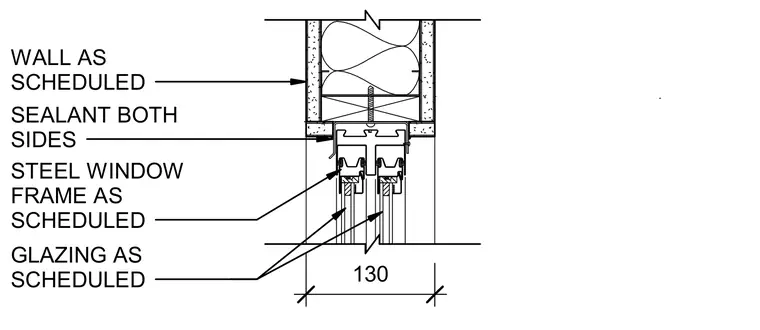

The steel window frame as scheduled connects directly to the underside of the wall as scheduled. Flexible sealant is applied to both sides of the frame head joint for weather and air sealing. Glazing as scheduled is retained within the steel window frame.
GLAZING AS SCHEDULED STEEL WINDOW FRAME AS SCHEDULED SEALANT BOTH SIDES WALL AS SCHEDULED 130
