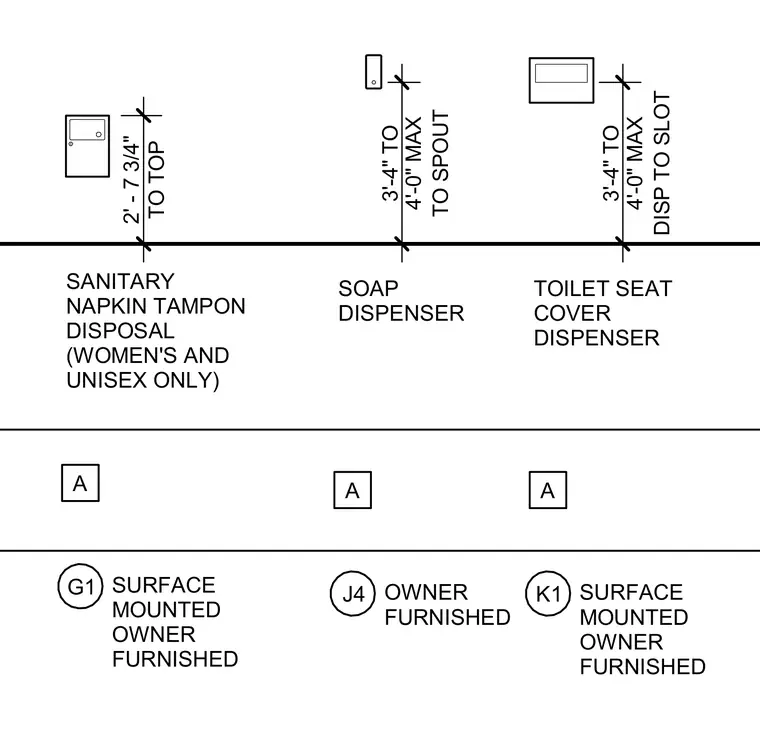

Surface-mounted restroom accessories are positioned at specific mounting heights relative to the finished floor. The sanitary napkin and tampon disposal unit is mounted with the top at two feet seven and three-quarter inches. The soap dispenser spout and the toilet seat cover dispenser slot are both positioned between three feet four inches and four feet zero inches maximum above the floor. All units are surface-mounted and owner-furnished in women's and unisex restrooms.
SANITARY NAPKIN TAMPON DISPOSAL (WOMEN'S AND UNISEX ONLY) A G1 SURFACE MOUNTED OWNER FURNISHED SOAP DISPENSER A J4 OWNER FURNISHED TOILET SEAT COVER DISPENSER A K1 SURFACE MOUNTED OWNER FURNISHED TO SPOUT 3'-4" TO 4'-0" MAX TO TOP 2' - 7 3/4" DISP TO SLOT 3'-4" TO 4'-0" MAX
