Millwork Countertop and Support Post Detail

Materials

Steel Timber / Wood Metal (misc.)

Elements

Columns Floors / Slabs Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

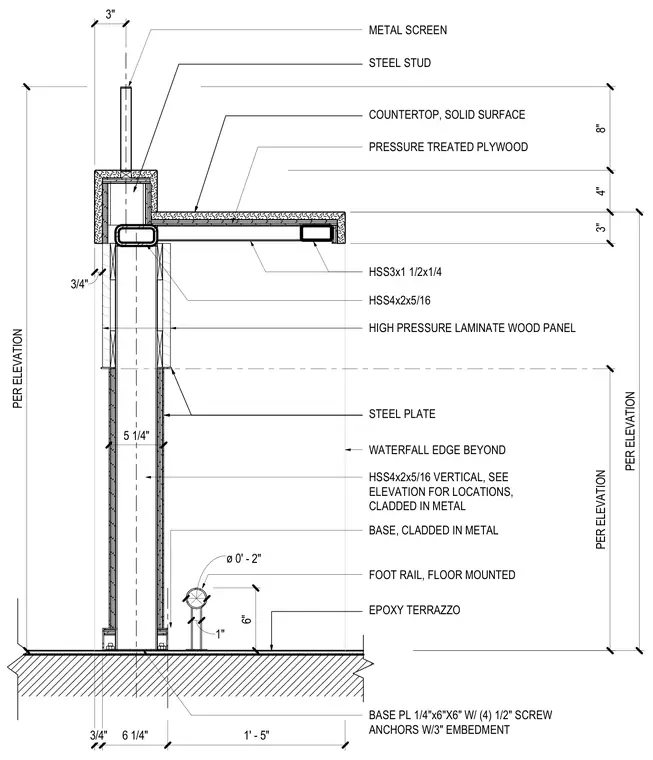

This millwork counter detail features a solid surface countertop and waterfall edge backed by pressure-treated plywood and supported by an HSS3x1-1/2x1/4 framing member. The main vertical support consists of an HSS4x2x5/16 hollow structural section, cladded in metal and high-pressure laminate wood panels, with a metal screen at the top. The vertical post rests on a 1/4-inch by 6-inch by 6-inch steel base plate secured with four 1/2-inch screw anchors having a 3-inch embedment into the epoxy terrazzo floor. A floor-mounted foot rail is positioned in front of the counter base.
