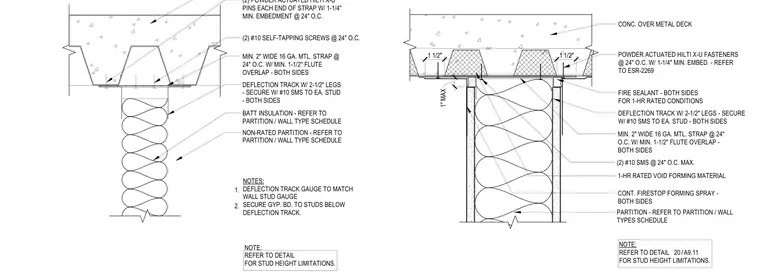

A non-rated and a one-hour fire-rated partition wall runs parallel to a concrete-filled metal deck. The assembly features a deflection track with two-and-a-half-inch legs secured to each stud with number ten sheet metal screws on both sides. A minimum two-inch wide sixteen gauge metal strap is anchored to the metal deck flute with two powder-actuated Hilti X-U pins per strap end at twenty-four inches on center, overlapping the flute by one and one-half inches minimum. For the fire-rated condition, one-hour rated void forming material and continuous firestop forming spray are applied with fire sealant on both sides. Batt insulation fills the stud cavity, and gypsum board is secured to studs below the deflection track per the wall type schedule.
(2) POWDER ACTUATED HILTI X-U PINS EACH END OF STRAP W/ 1-1/4" MIN. EMBEDMENT @ 24" O.C. (2) #10 SELF-TAPPING SCREWS @ 24" O.C. MIN. 2" WIDE 16 GA. MTL. STRAP @ 24" O.C. W/ MIN. 1-1/2" FLUTE OVERLAP - BOTH SIDES DEFLECTION TRACK W/ 2-1/2" LEGS - SECURE W/ #10 SMS TO EA. STUD - BOTH SIDES BATT INSULATION - REFER TO PARTITION / WALL TYPE SCHEDULE NON-RATED PARTITION - REFER TO PARTITION / WALL TYPE SCHEDULE NOTES: DEFLECTION TRACK GAUGE TO MATCH WALL STUD GAUGE SECURE GYP. BD. TO STUDS BELOW DEFLECTION TRACK. 1. 2. NOTE: REFER TO DETAIL FOR STUD HEIGHT LIMITATIONS. (2) #10 SMS @ 24" O.C. MAX. CONC. OVER METAL DECK POWDER ACTUATED HILTI X-U FASTENERS @ 24" O.C. W/ 1-1/4" MIN. EMBED. - REFER TO ESR-2269 FIRE SEALANT - BOTH SIDES FOR 1-HR RATED CONDITIONS DEFLECTION TRACK W/ 2-1/2" LEGS - SECURE W/ #10 SMS TO EA. STUD - BOTH SIDES 1 1/2" 1-HR RATED VOID FORMING MATERIAL CONT. FIRESTOP FORMING SPRAY - BOTH SIDES 1" MAX MIN. 2" WIDE 16 GA. MTL. STRAP @ 24" O.C. W/ MIN. 1-1/2" FLUTE OVERLAP - BOTH SIDES 1 1/2" PARTITION - REFER TO PARTITION / WALL TYPES SCHEDULE NOTE: REFER TO DETAIL FOR STUD HEIGHT LIMITATIONS. / 20 A9.11
