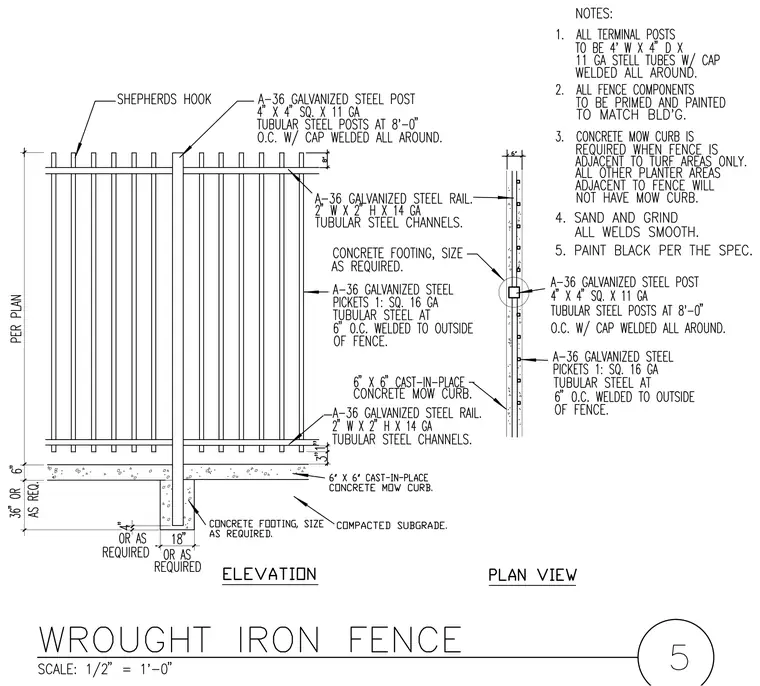

An A-36 galvanized steel post measuring 4 inches by 4 inches by 11 gauge supports a tubular steel fence spaced at 8 feet 0 inches on center with a cap welded all around. A-36 galvanized steel rails measuring 2 inches wide by 2 inches high by 14 gauge tubular steel channels receive A-36 galvanized steel square pickets of 16 gauge spaced at 6 inches on center welded to the outside of the fence. A shepherd's hook profile tops the assembly. The fence bears on a concrete footing sized as required with an 18-inch or as required depth and a 36-inch or as required below-grade depth over compacted subgrade. A 6-inch by 6-inch cast-in-place concrete mow curb is required when the fence is adjacent to turf areas only, while other planter areas remain without a mow curb. All terminal posts measure 4 feet wide by 4 feet deep using 11 gauge steel tubes with caps welded all around. All fence components are primed and painted to match the building, with all welds ground smooth and painted black per specifications.
