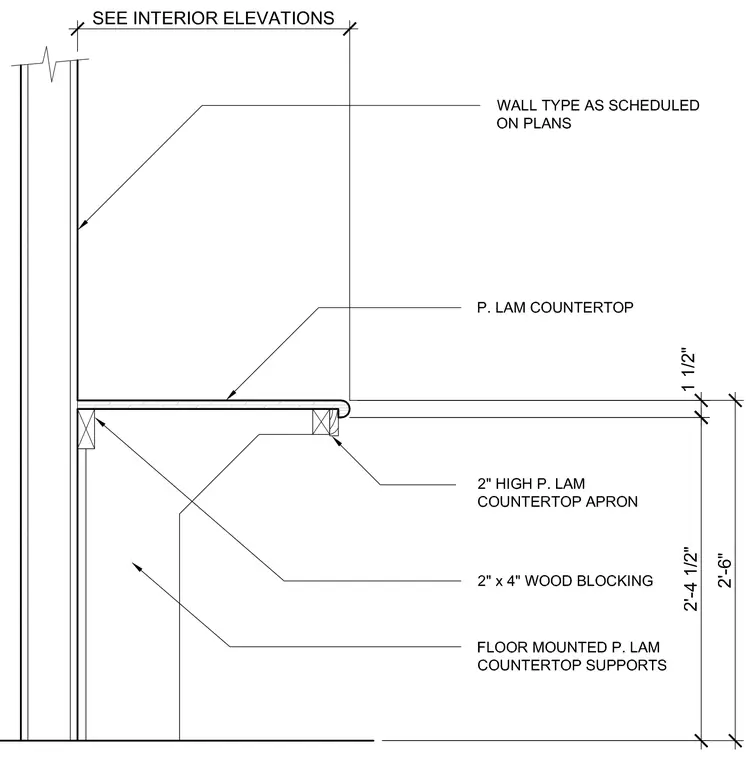

This wall-mounted plastic laminate countertop assembly is anchored to a wall type as scheduled on plans with a total height of two feet six inches to the top surface. The countertop features a rounded edge profile and is supported by two-by-four wood blocking tied into the wall assembly, along with a two-inch high plastic laminate countertop apron. Floor-mounted plastic laminate countertop supports provide vertical load transfer from the underside of the counter down to the finished floor. Dimensions indicate a one-and-one-half-inch thickness for the counter build-up and a two-foot-four-and-one-half-inch clear height below.
