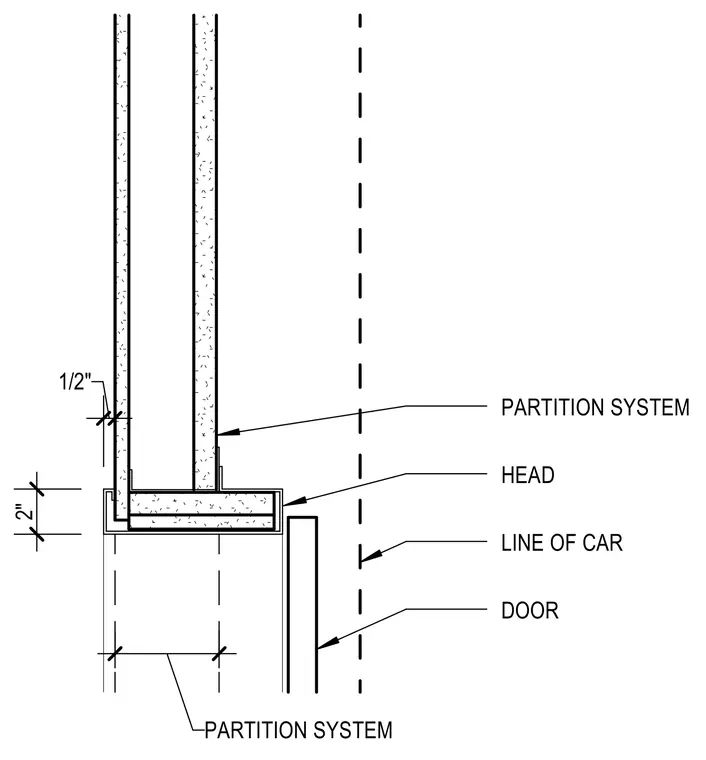

An elevator door head frames the top of the opening adjacent to a partition system with a two-inch vertical clearance dimension. The partition system extends upward alongside a half-inch dimensional gap. The door aligns with the indicated line of car.
