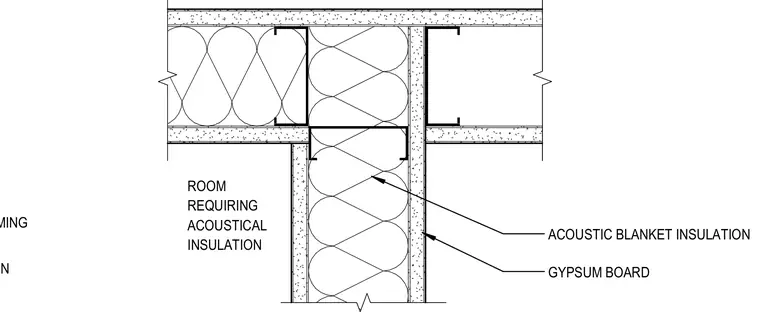

Non-structural metal framing supports layers of gypsum board on both sides of the partition walls. Acoustic blanket insulation fills the cavity of the room requiring acoustical insulation. The intersecting partition abuts the continuous gypsum board face of the main partition.
ACOUSTIC BLANKET INSULATION NON-STRUCTURAL METAL FRAMING ACOUSTIC BLANKET INSULATION GYPSUM BOARD ROOM REQUIRING ACOUSTICAL INSULATION
