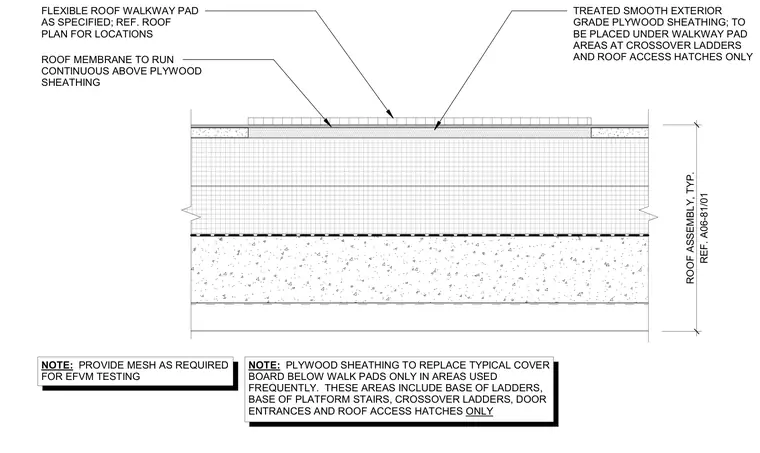

This section detail shows a flexible roof walkway pad installed over treated smooth exterior grade plywood sheathing at high-traffic roof areas such as crossover ladders and roof access hatches. The treated plywood sheathing replaces the typical cover board below the walkway pads in these specific zones. A continuous roof membrane runs above the plywood sheathing, and wire mesh is provided as required for electronic vector mapping (EFVM) testing.
NOTE: PROVIDE MESH AS REQUIRED FOR EFVM TESTING FLEXIBLE ROOF WALKWAY PAD AS SPECIFIED; REF. ROOF PLAN FOR LOCATIONS TREATED SMOOTH EXTERIOR GRADE PLYWOOD SHEATHING; TO BE PLACED UNDER WALKWAY PAD AREAS AT CROSSOVER LADDERS AND ROOF ACCESS HATCHES ONLY ROOF MEMBRANE TO RUN CONTINUOUS ABOVE PLYWOOD SHEATHING REF. A06-81/01 ROOF ASSEMBLY, TYP. NOTE: PLYWOOD SHEATHING TO REPLACE TYPICAL COVER BOARD BELOW WALK PADS ONLY IN AREAS USED FREQUENTLY. THESE AREAS INCLUDE BASE OF LADDERS, BASE OF PLATFORM STAIRS, CROSSOVER LADDERS, DOOR ENTRANCES AND ROOF ACCESS HATCHES ONLY
