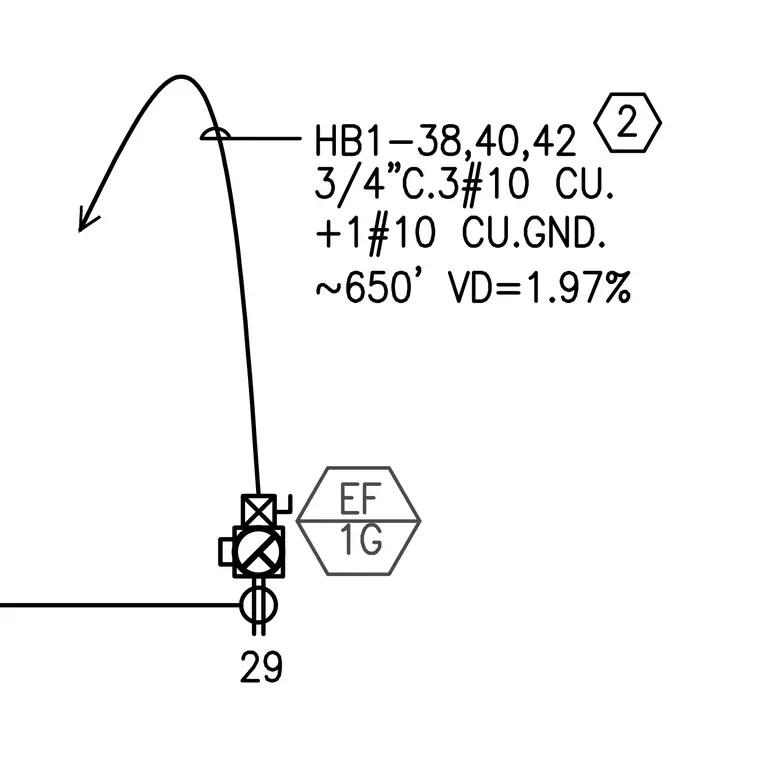

The electrical run consists of three number 10 copper conductors inside a three-quarter-inch conduit designated as circuit HB1-38,40,42, accompanied by one number 10 copper ground wire. The run length is approximately 650 feet with a voltage drop of 1.97 percent. The circuit connects to equipment designated EF 1G.
