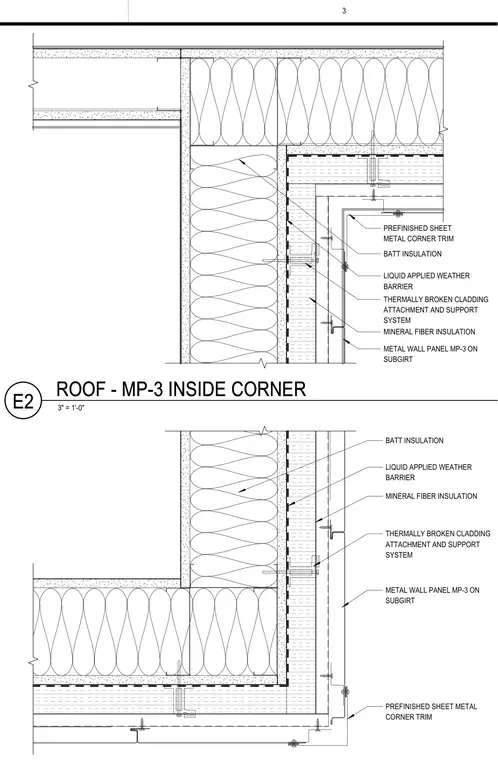

Metal wall panels MP-3 are mounted on subgirts over mineral fiber continuous insulation and a liquid applied weather barrier. A thermally broken cladding attachment and support system secures the exterior panels. Batt insulation fills the interior cavity behind the backup wall. A prefinished sheet metal corner trim finishes the inside corner junction.
BATT INSULATION METAL WALL PANEL MP-3 ON SUBGIRT LIQUID APPLIED WEATHER BARRIER THERMALLY BROKEN CLADDING ATTACHMENT AND SUPPORT SYSTEM MINERAL FIBER INSULATION PREFINISHED SHEET METAL CORNER TRIM BATT INSULATION METAL WALL PANEL MP-3 ON SUBGIRT LIQUID APPLIED WEATHER BARRIER THERMALLY BROKEN CLADDING ATTACHMENT AND SUPPORT SYSTEM MINERAL FIBER INSULATION PREFINISHED SHEET METAL CORNER TRIM 3 3" = 1'-0" E2 ROOF - MP-3 INSIDE CORNER
