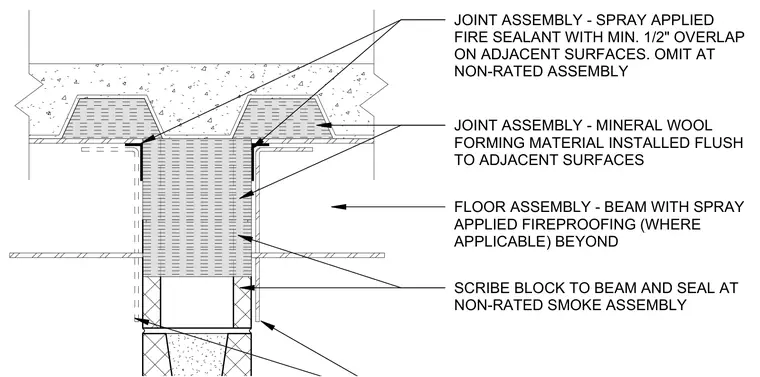

A joint assembly is formed between the top of the partition and the concrete-filled metal deck above, utilizing mineral wool forming material installed flush to adjacent surfaces. A spray-applied fire sealant with a minimum one-half-inch overlap on adjacent surfaces is applied at the joint, omitted at non-rated assemblies. A scribe block is fitted to the beam and sealed at non-rated smoke assembly joints. A structural beam with spray-applied fireproofing is positioned beyond the joint as applicable.
JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES. OMIT AT NON-RATED ASSEMBLY SCRIBE BLOCK TO BEAM AND SEAL AT NON-RATED SMOKE ASSEMBLY JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES FLOOR ASSEMBLY - BEAM WITH SPRAY APPLIED FIREPROOFING (WHERE APPLICABLE) BEYOND
