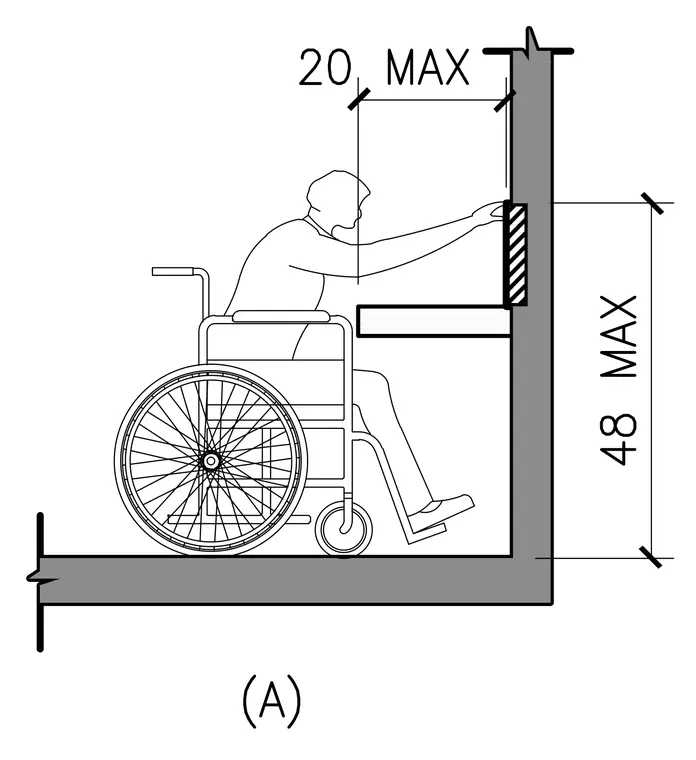

An accessible counter and wall-mounted element are dimensioned for a wheelchair user in a forward reach condition. The mounting height reaches a maximum of forty-eight inches above the finished floor, and the forward reach extends a maximum of twenty inches across the counter. These dimensions comply with accessibility standards for reach ranges and fixture placement.
