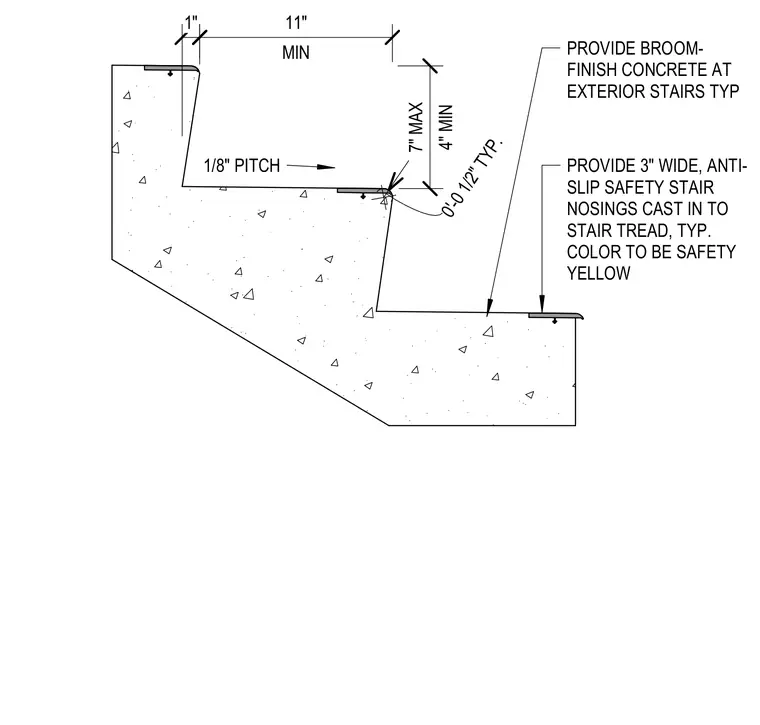

Cast-in-place concrete stair treads feature an 11-inch minimum run, a 7-inch maximum rise, and a 4-inch minimum rise with a 1/8-inch pitch for drainage. Each tread is finished with an exterior broom finish and a 3-wide cast-in safety yellow anti-slip stair nosing set typically 1 inch from the edge.
MIN 11" 4" MIN 7" MAX 1" 1/8" PITCH PROVIDE 3" WIDE, ANTI- SLIP SAFETY STAIR NOSINGS CAST IN TO STAIR TREAD, TYP. COLOR TO BE SAFETY YELLOW 0'-0 1/2" TYP. PROVIDE BROOM- FINISH CONCRETE AT EXTERIOR STAIRS TYP
