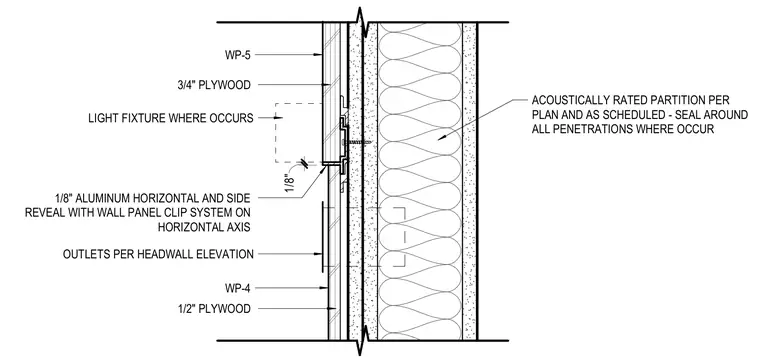

An acoustically rated partition supports a wall panel system featuring three-quarter-inch and one-half-inch plywood substrates designated as WP-5 and WP-4. The panels are secured using a wall panel clip system with a one-eighth-inch aluminum horizontal and side reveal. Outlets and light fixtures are integrated per the headwall elevation and plan requirements, with all penetrations sealed.
1/8" ALUMINUM HORIZONTAL AND SIDE REVEAL WITH WALL PANEL CLIP SYSTEM ON HORIZONTAL AXIS 1/2" PLYWOOD 3/4" PLYWOOD WP-5 WP-4 ACOUSTICALLY RATED PARTITION PER PLAN AND AS SCHEDULED - SEAL AROUND ALL PENETRATIONS WHERE OCCUR 1/8" LIGHT FIXTURE WHERE OCCURS OUTLETS PER HEADWALL ELEVATION
